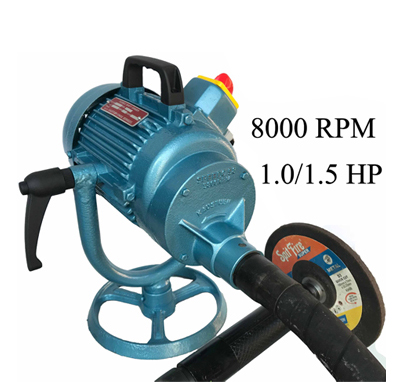

Motor : 1.0 /1.5 H.P., 440 Volts, 3 Phase, A.C., 50 Hz.
1.0 HP S. Ph. 230 Volts, 50 Hz.

Speed : 8000 RPM

Std. Acc : 10 X 1500 Metal Flexible Shaft with WH 10 or Fh 10 Tool holder with 6or 6.35 MM collate

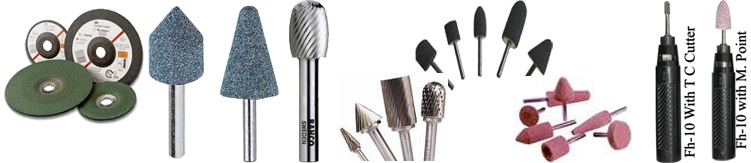

Tools : Mounted Points, Resin Bonded Grinding Wheel up to 5", Plain / DCD

Application : Mounted points, Resin bonded Grinding Wheel up to 5" Plain /DCD, Die Grinding, Debarring, with Mounted point, Tungsten Carbide rotary Cutter, Etc.

Area : Most Suitable for Foundries of Cast Iron and Steel for fine finishing / Fettling, and Forging Shop

Flexible Shaft Grinders



Application of Flexible Shaft Grinders ( Speedo 80 )
speedo80_4

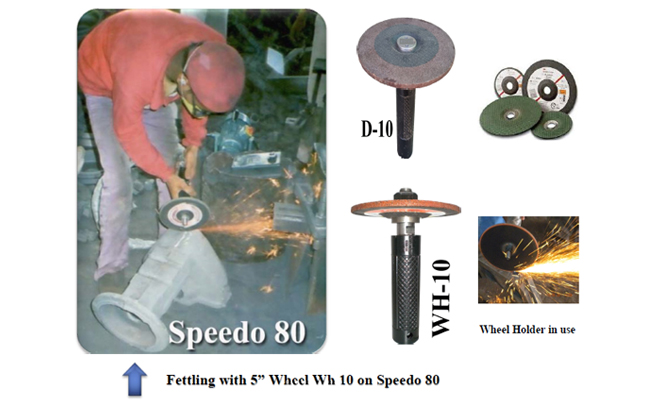

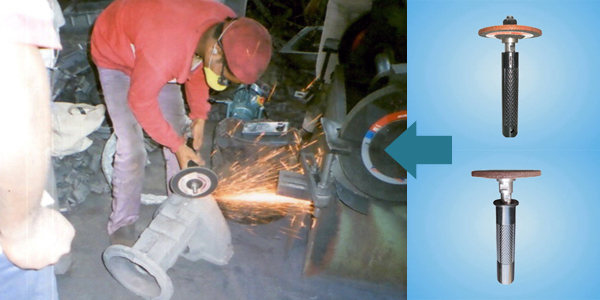

Fettling with 5” Wheel Wh 10 on Speedo 80

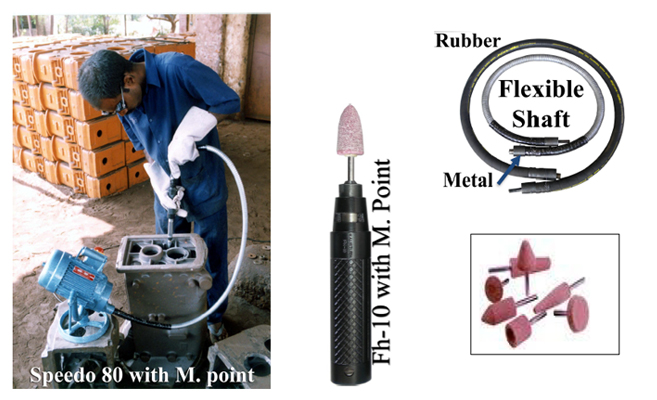

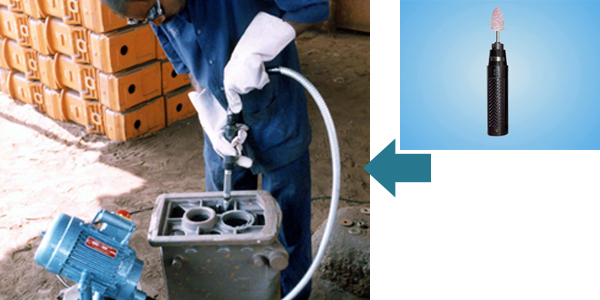

Fettling with M.Point /Fh 10 on Speedo 80, speedo120_5

Fettling with M.Point /Fh 10 on Speedo 80

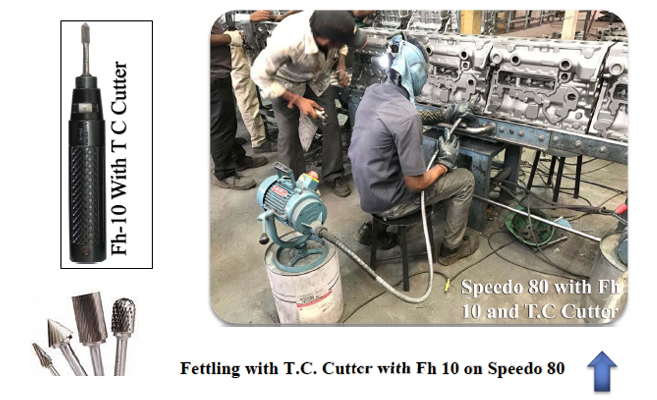

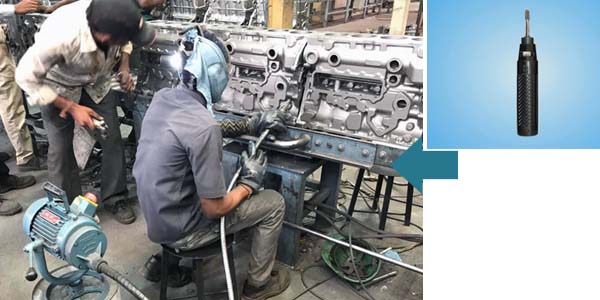

Fettling with T.C. Cutter with Fh 10 on Speedo 80

Fettling with T.C. Cutter with Fh 10 on Speedo 80

speedo80_12

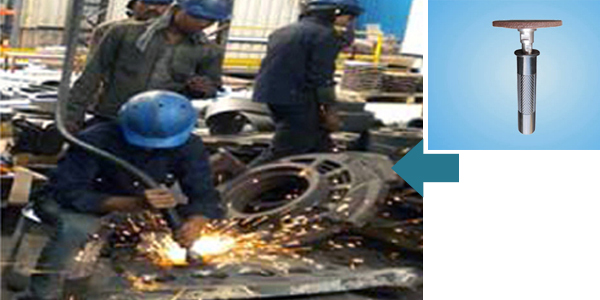

Fettling with D 10








Flexible Shaft Size and Type Holder Application
10 X 1500 MM. Metal / Rubber FH 10 with 6/6.35 MM Collate For Mounted Points & Cutter
10 X 2000 MM Metal / Rubber FH 10 with 6/6.35 MM Collate For Mounted Points & Cutter
10 X 1200 MM Metal WH 10 For Grinding Wheels Bore 15.8 / 22.2 mm O.D. Max 125 mm
12 x 1500 MM Metal WH 10 For Grinding Wheels Bore 15.8 / 22.2 mm O.D. Max 125 mm
Flexible Shaft Metal/ Rubber
Variety of Tool Holders
wh-15

WH 10

d-15

D 10

wheel-gurad

WH 10 Wheel Guard

tool_holders

FH 10 With M.Point

WH 15 With Buffring Attachment

WH 15 With Buffring Attachment

tool_holders

FH 10 With Metal Burr
